In flexible packaging, printing success relies entirely on the mechanical harmony between substrate properties and machine capabilities. Converters face immense pressure to deliver flawless graphics at high speeds. Misjudging film compatibility leads to severe registration drift. It causes webbing wrinkles and high material waste. These preventable failures directly reduce your production margins. We know you cannot afford trial and error on the press floor.
Our goal is straightforward. We will provide a technical evaluation of how different polymer films behave during the rotogravure process. You will learn how to match your substrate requirements to the right equipment configurations. By understanding web tension, thermal limits, and advanced drive systems, you can eliminate guesswork entirely. You will optimize your press for both rigid and highly extensible films.
Rigid films like PET and BOPP offer the highest yield and speed due to superior dimensional stability.
Stretchable or heat-sensitive substrates (like LDPE) require advanced tension control, typically necessitating an electronic shaft rotogravure printing machine.
Multi-layer flexible packaging often dictates the need for an 8 color gravure printing machine to handle complex process colors, white underbases, and spot varnishes.
Evaluating a machine’s drying system and tension isolation zones is just as critical as its printing cylinders when running thin films.
Selecting the wrong film disrupts your entire production schedule. Operators often misjudge substrate choices completely. They sometimes select films based purely on raw material availability. They overlook the mechanical reality of the press entirely. A poorly matched substrate dictates slower overall line speeds. It restricts your solvent selection unnecessarily. It destroys your Overall Equipment Effectiveness (OEE). We see converters lose precious hours to constant manual tension adjustments. You cannot recover this lost machine time easily.
Printing applies severe physical stress to flexible materials continuously. Nip pressure squeezes the substrate against the engraved cylinder. High-velocity hot air blasts the web for rapid drying. Web tension pulls the material aggressively across numerous rollers. A film gravure printing machine must balance these dynamic forces perfectly. If it fails, the web distorts immediately. Sometimes it breaks completely during a high-speed run.
Film dimensional stability directly dictates your registration accuracy. Stable films stay perfectly flat during high-speed production runs. They reduce material waste during initial job setups. They handle automated splicing mechanisms smoothly. Weak stability ruins your final print yield. Registration drifts out of tolerance very quickly. This eats into your daily production efficiency. You must connect material properties to machine capabilities proactively.
Common production failures tied to poor film selection include:
Severe color misregistration during press acceleration phases.
Web breaks caused by excessive unwind tension settings.
Solvent trapping due to incompatible thermal limits.
Delamination caused by untreated or expired film surfaces.
Flexible packaging relies on a few core polymer types. We will examine the top performers and their machining characteristics.
BOPP acts as an exceptional moisture barrier for packaged foods. It boasts incredibly high tensile strength. Converters widely consider it the industry standard for packaging. It runs flawlessly at maximum equipment production speeds. Operators rarely need to tweak baseline tension settings. The film resists stretching under high mechanical pull forces. It provides a highly predictable printing surface. You can rely on it for long, uninterrupted runs.
Best Practice: Always store BOPP rolls in a climate-controlled environment. Check surface dyne levels prior to mounting the roll.
PET provides superior heat resistance and exceptional physical rigidity. You can push it through high-temperature drying zones safely. Ovens can often exceed typical limits without damaging the film. The rigid material supports ultra-fine halftone dot transfer beautifully. It avoids substrate distortion entirely during the printing process. We strongly recommend PET for premium graphic applications. It delivers the sharpest possible image resolution available.
Common Mistake: Applying excessive web tension while assuming PET cannot break. Overheating the oven can cause the web to become brittle.
Shrink films pose unique thermal challenges for press operators. Manufacturers design them specifically to shrink under applied heat. They remain highly heat sensitive throughout the entire process. The press requires highly calibrated, specialized air drying. You need low-temperature, high-volume air circulation systems. This precise control prevents premature shrinkage inside the oven. You must monitor oven temperatures obsessively.
Best Practice: Utilize chilled rollers immediately after the drying zone to stabilize the shrink film.
Polyethylene (PE) and Nylon introduce significant processing hurdles today. These materials are inherently highly stretchable. They deform easily under standard mechanical strain. They are prone to severe registration errors constantly. You must pull them through multiple print stations carefully. Slight tension variations cause immediate color misalignment across the web.
Traditional mechanical line shafts struggle immensely here. They rely on physical drive shafts and heavy gearboxes. They suffer inherent gear backlash over time. They provide delayed tension compensation across the press length. You cannot fix substrate stretch instantly using analog gears. This leads to unacceptable material waste during press ramp-up sequences.

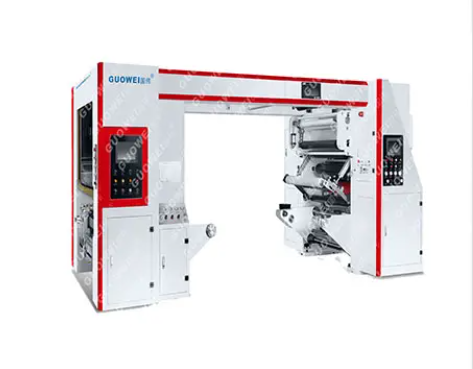

Extensible films demand modern, highly responsive drive architectures. This highlights the absolute necessity of an electronic shaft rotogravure printing machine. Independent servo motors drive every single print station directly. They communicate via high-speed digital networks. They deliver micro-millimeter registration corrections almost instantly. The system isolates tension perfectly between each discrete printing unit.
Feature Dimension | Mechanical Line Shaft | Electronic Shaft (Servo) |
|---|---|---|
Tension Response | Delayed due to physical gearing | Instantaneous micro-adjustments |
Registration Drift | High during speed changes | Minimal to zero at all speeds |
Ideal Film Types | Rigid films (PET, BOPP) | Extensible films (PE, Nylon) |
Maintenance Needs | Frequent gearbox lubrication | Minimal physical wear |
Your machine specifications must match your actual packaging requirements perfectly. You must evaluate several critical technical dimensions before purchasing.
Flexible pouch converters manage increasingly complex graphic designs today. Brands demand vibrant colors and specialized functional coatings. Converters frequently evaluate an 8 color gravure printing machine. This configuration offers immense flexibility for packaging production. It easily handles the standard CMYK process colors. It provides physical room for two dedicated spot colors. It lays down a heavy, opaque white underbase. It applies a final matte or high-gloss protective coating. Eight stations represent the ideal sweet spot for food packaging.
Tension isolation requires incredibly robust mechanical engineering throughout the press. You must include closed-loop tension control systems everywhere. The press needs highly sensitive, low-friction dancer rollers. It requires accurate, fast-responding load cells. You must place these in specific control zones systematically. Key zones include the unwind, infeed, printing, outfeed, and rewind sections. Proper zoning prevents web flutter completely.
Drying efficiency links directly to your final production outcomes. High-efficiency nozzles outperform traditional drying ovens significantly. They maximize air velocity across the moving web surface. Faster solvent evaporation improves your overall processing speed. This directly correlates to running heat-sensitive films safely. You can dry the wet ink rapidly. You avoid trapping harmful solvent odors inside the finished roll.
Printing flexible films involves inherent processing risks daily. You must implement strict quality control measures to protect yields.
Trapped solvents ruin multi-layer flexible laminates completely. They cause packaging to fail strict food safety standards. They create unpleasant odors when consumers open the product.
Mitigation: Operators must ensure proper oven balancing. You must match ink formulations to the film correctly. Check the film's surface tension before starting the run. A stable dyne level ensures proper ink curing. We recommend conducting regular gas chromatography tests to verify retained solvent levels.
Uneven gauge bands in the raw film cause wrinkles. Misaligned idler rollers contribute to lateral web movement. This pushes the film out of precise alignment.
Mitigation: Install advanced electronic web guiding systems. Use specialized spreader rollers to flatten the moving web. You must perform regular roller parallel alignment checks. Do not rely solely on visual observation for alignment.
High-speed film friction generates static charges constantly. This creates severe fire hazards in solvent-heavy environments. It also causes ink feathering around sharp text edges.
Mitigation: You must mandate active anti-static bars everywhere. Install them just before every single impression roller. Ensure your facility ventilation system remains strictly ATEX-compliant. A standard rotogravure printing machine absolutely needs these critical safety upgrades.
Purchasing a new press requires methodical planning and data collection. You need hard operational data before contacting manufacturers.
Define the Baseline: Document your primary film types thoroughly. Note your maximum required web width accurately. Record your average job run lengths meticulously. These metrics form your core equipment baseline. They prevent you from buying unnecessary press features. They keep you focused entirely on real operational needs.
Requesting Proof of Concept (PoC): Demand a rigorous live trial run. Ask OEMs to run your thinnest or most difficult film. Provide a 12-micron PET roll for testing. Supply a highly extensible 20-micron PE sample. Do not let them use their optimal test materials. You need real-world validation of their tension control capabilities. Watch the press ramp up to its maximum speed. Observe the registration stability during rapid speed changes.
Evaluate Operator Interface (HMI): Assess the control panel usability extensively. Complex machines require highly intuitive touchscreens. Operators must easily monitor tension zones and registration marks. A poorly designed interface increases human error during fast changeovers.
The "best" film depends entirely on your specific press configuration. You must assess its tension and thermal capabilities honestly. Rigid films remain universally easier to print on. However, modern servo-driven presses have leveled the playing field entirely. They handle extensible substrates flawlessly at high speeds. They eliminate the traditional mechanical boundaries of flexible packaging films.
Prioritize a machine architecture carefully before buying. Ensure it supports your most difficult, extensible substrate. Focus on optimizing your highest-margin film products first. This specific strategy will future-proof your capital investment completely. You will dominate the competitive flexible packaging market confidently.
A: Yes, but transitioning to PE requires upgrading to electronic shaft synchronization and specialized chilled rollers to manage the film's stretch and heat sensitivity.
A: Typically, films must be corona-treated to a surface tension of 38-42 dynes/cm to ensure proper ink adhesion and prevent delamination.
A: Food packaging often requires reverse printing on clear films, necessitating standard CMYK, dedicated brand spot colors, a heavy white backing layer, and a protective overprint varnish, totaling 8 stations.
