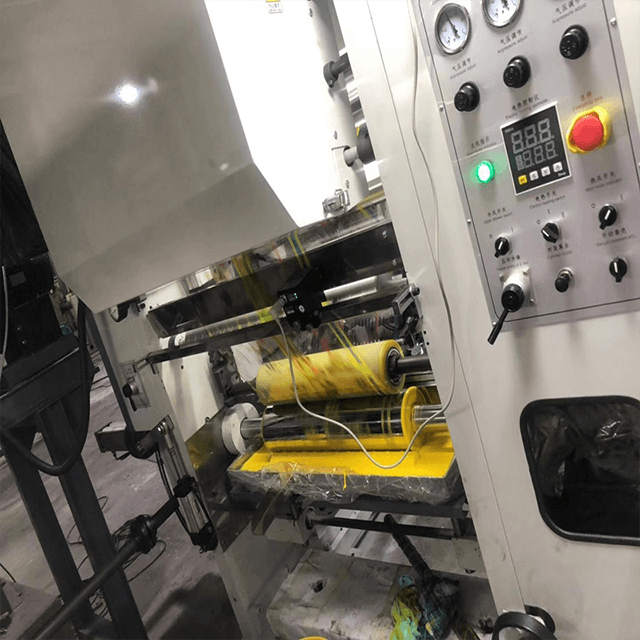

Poor print registration drains operational margins rapidly. Every misaligned millimeter translates directly to excessive substrate waste and wasted ink. Operators frequently blame prepress files or cylinder setup. However, the true hidden variable is web tension fluctuation. It serves as the primary mechanical culprit behind color misalignment. Drying oven temperatures and machine running speeds further compound these tension errors during production. Plant managers and technical buyers face a critical choice today. You must evaluate whether to retrofit legacy equipment or invest in modern machinery. Upgrading to advanced tension control systems offers profound operational advantages. We will explore how tension physics impacts color drift across multiple stations. You will learn to identify necessary control capabilities before purchasing new equipment. Mastering these dynamics ensures better print quality and protects your production profitability.
Web tension dictates substrate strain; even microscopic variations between printing units cause color registration drift.
Thermal dynamics in drying ovens alter material elasticity, requiring dynamic, real-time tension compensation.
Legacy mechanical shaft systems compound tension errors through backlash, whereas electronic shaft rotogravure printing machines isolate and control tension at each station.
Evaluating a new machine requires looking past top speeds to scrutinize closed-loop tension feedback, load cell accuracy, and substrate-specific handling capabilities.
Web tension directly dictates how a substrate behaves during the printing process. Understanding this physical relationship helps operators diagnose registration issues effectively. Tension physically stretches the substrate as it moves through the press. We call this material strain. When web tension fluctuates between station one and station two, the strain changes. The substrate either elongates or relaxes microscopically. This shifting stretch causes the second color to land off-target. The printed image immediately loses its crisp alignment.
Every substrate possesses a specific modulus of elasticity. This defines how much it stretches under a given load. You must apply enough tension to keep the web flat. However, you cannot apply so much tension causing permanent deformation. If pulling forces remain perfectly constant, the stretch remains constant. Registration stays locked. Unfortunately, physical printing environments fluctuate constantly. Friction changes, roll diameters decrease, and speeds vary. These variables alter the pulling force. When the force changes, the material stretch changes instantly. This basic physics principle explains why manual tension adjustments often fail to hold registration.
Tension errors do not isolate themselves. They cascade and multiply across the entire press line. Operating an 8 color gravure printing machine presents significant mechanical challenges. A baseline tension error occurring at the unwinder magnifies rapidly. The error travels across each subsequent printing nip. Drying ovens located between stations further multiply these strain variations. If station two pulls slightly harder than station one, the error compounds by the time the web reaches station eight. What starts as a micrometer drift becomes a millimeter disaster. You lose the entire production roll to quality control rejection.
Common Mistake: Operators often try fixing multi-station registration drift by adjusting the compensator roller at the final station. This masks the symptom but ignores the root cause. You must correct the compounding tension error at the initial feeding zones.
Environmental temperatures and drying ovens directly correlate with web tension stability. Heat physically alters the yield strength of any given substrate. Substrates become noticeably more elastic as temperatures rise. Tension setpoints cannot remain static during a run. They must dynamically adjust based on thermal exposure. The Technical Association of the Graphic Arts recognizes thermal expansion as a primary registration disruptor. If you run a plastic film through a high-temperature oven, it softens. A pulling force working perfectly at room temperature will over-stretch the heated film. Your machine must compensate for this thermal softening instantly.
Different materials require entirely different tension handling strategies. Rigid substrates like heavy paper board behave predictably under mechanical stress. They resist stretching. Highly extensible materials react much more violently. Biaxially Oriented Polypropylene (BOPP), Polyethylene Terephthalate (PET), and Polyethylene (PE) stretch quite easily. A modern film gravure printing machine handles these sensitive plastics daily. Processing them requires specialized hardware.
Extensible films demand hyper-sensitive tension control. Paper might tolerate a 5% tension spike without losing print registration. A thin PE film will stretch permanently under that same 5% spike. Once the film deforms permanently, you cannot recover the registration. Different plastics also react differently to heat. PET handles oven heat better than PE. You must program unique tension profiles for every specific material type. Trusting generic tension settings ruins extensible films.
Running thin-gauge films demands extreme mechanical precision. You need extremely narrow tension tolerance windows. If tension spikes slightly, the film experiences necking. Necking means the material shrinks in width as it stretches in length. This width reduction distorts the printed image horizontally. Excessive tension leads to complete web breaks inside the oven. Web breaks cause massive downtime for cleaning and re-threading. Conversely, low tension causes bagging, edge wandering, and wrinkles. Wrinkles passing through the nip roller destroy the impression cylinder.
Assess equipment carefully before attempting to run extensible films. You must define strict operational criteria for the machine. Ultra-low-friction dancer rollers are absolutely necessary. Standard pneumatic cylinders introduce too much friction. You need low-friction air cylinders specifically designed for delicate webs. High-resolution load cells provide critical feedback to the PLC. You must calibrate these sensors specifically for low-tension thresholds. This prevents microscopic substrate deformation during high-speed production runs.
The drive architecture dictates how well your machine manages web tension. Historically, manufacturers used a single massive motor driving a long mechanical shaft. This shaft connected to every printing station via gearboxes. Modern engineering has completely replaced this concept.
Mechanical line shafts suffer from severe structural flaws. Long drive shafts experience torsional twisting under heavy loads. The shaft literally twists like a spring. Gear backlash introduces mechanical play between stations. Physical wear and tear degrade performance over time. Speed changes inherently introduce tension instability. When you accelerate the machine, the twisting effect changes. These mechanical systems simply cannot react fast enough to maintain perfect registration during speed ramps.
Modern architectures abandon the single drive shaft completely. An electronic shaft rotogravure printing machine uses individual servo motors. Each impression cylinder gets its own synchronized independent drive. They communicate via high-speed digital fiber-optic networks. A virtual master encoder sends exact position data to every motor simultaneously. This ensures perfect synchronization without physical connections.
Electronic shafts eliminate mechanical backlash entirely. This allows operators to create precise, isolated tension zones between every single station. Make-ready phases become much shorter. Registration locks in significantly faster. You waste far less material getting the job up to color. Electronic systems actively correct their own position thousands of times per second.
Table 1: Drive Architecture Comparison
Feature | Mechanical Line Shaft | Electronic Shaft (Servo) |
|---|---|---|
Power Transmission | Physical gears, belts, and long metal shafts | Independent servo motors linked via digital network |
Tension Isolation | Poor; errors transfer physically down the line | Excellent; individual nip zones act independently |
Backlash Effect | High; causes registration bounce during speed changes | Zero; direct drive eliminates mechanical play |
Make-Ready Waste | High; takes longer to synchronize mechanical parts | Low; digital synchronization locks in quickly |
Maintenance Needs | Frequent lubrication, gear replacement, and alignment | Minimal mechanical wear; mostly sensor calibration |
Looking at top running speed alone tells you nothing about machine quality. A fast machine producing out-of-register scrap is useless. You must scrutinize the tension control infrastructure. Certain capabilities are non-negotiable for modern flexible packaging production.
You must evaluate closed-loop systems carefully. Open-loop systems guess the required tension based on roll diameter. Closed-loop systems measure actual tension and adjust continuously. Integrating load cells allows direct tension measurement across the web width. Dancer rollers provide physical tension buffering against sudden shocks. Both must feed data into a high-speed Programmable Logic Controller (PLC). This combination guarantees real-time adjustments before registration drifts.
Best Practice: Always use dual load cells (one on each end of the roller). This detects uneven tension across the web width, which causes wrinkling.
Maintaining tension during flying splices is critical. Splice transitions at the unwinder often cause massive registration loss. The old roll expires, and the new roll accelerates to match speed. A premium gravure printing machine manages this seamlessly. Tension transfer must happen without shocking the web. The splicing sequence requires precise motor synchronization. If the tension drops during the cut, you lose registration for several hundred meters.
Modern optical web inspection systems offer massive benefits. They do more than just show the operator a picture. These systems communicate directly with tension control modules. Follow these evaluation steps when reviewing camera systems:
Verify Digital Handshakes: Ensure the inspection camera speaks the same protocol as the machine PLC.
Check Correction Algorithms: The camera should predict drift trends, not just react to massive errors.
Assess Micro-Drift Handling: The system must automatically correct tension variables before errors exceed acceptable tolerances.
Review Job Storage: The camera system should save material-specific parameters for quick recall on repeat orders.
Investing in advanced tension control transforms your production floor. However, you must plan the implementation carefully. Technology alone does not guarantee success. Your team must adapt to new workflows and maintenance protocols.
Calculate your return on investment based on operational efficiency gains. Track reduced make-ready waste meticulously. Compare the setup scrap of an older mechanical press against a new servo-driven press. Monitor lower rejection rates during long production runs. Better tension control means fewer customer returns. Finally, factor in increased sustainable running speeds. A machine holding tight registration at 300 meters per minute drives profitability much higher than one struggling at 150 meters per minute.
Address the operator learning curve immediately. Transitioning to highly automated, servo-driven tension systems requires paradigm shifts. Operators must learn to trust the Human-Machine Interface (HMI). They cannot rely on traditional tactile "feel" anymore. Banging on a compensator roller with a wrench no longer works. Specific training ensures smooth adoption.
Train operators on digital recipe management rather than manual dials.
Teach maintenance crews how to troubleshoot fiber-optic network errors.
Establish clear rules against manually overriding automated tension loops.
Conduct cross-training between prepress and pressroom teams regarding material stretch factors.
Electronic systems drastically reduce mechanical wear-and-tear. You replace fewer gears and belts. However, they introduce new precision maintenance requirements. You must follow rigid sensor calibration protocols. Load cells lose accuracy if neglected. Clean environments maintain sensor integrity. Dirt, dust, and dried ink buildup compromise load cell movement. If the load cell sticks, the PLC receives false data. The machine will then apply incorrect tension, destroying registration.
Mastering print registration fundamentally means mastering web tension. You cannot achieve perfect color alignment if your substrate constantly stretches and shrinks between stations. The physical forces involved require sophisticated, automated management. Heat, speed, and material elasticity constantly fight against your quality goals.
We recommend conducting a comprehensive audit of your current setup waste. Analyze your registration drift logs closely. Determine if outdated tension control creates your primary bottleneck. If mechanical backlash or poor splicing causes your waste, it is time for an upgrade.
Advise your procurement team to shortlist equipment vendors carefully. Choose partners who transparently demonstrate dynamic tension accuracy. Ask them to perform live trials using your most difficult extensible films. Watch how their equipment handles high-speed transitions. Investing in precise electronic shaft architecture secures your operational margins for the future.
A: Heat softens extensible substrates like plastic films, changing their elongation properties. As the film heats up, its yield strength drops. Without dynamic tension control, this thermal softening alters the web's length between stations. The material stretches too much, immediately throwing off the color registration.
A: It replaces a single mechanical drive shaft with independent servo motors at each printing unit. This digital architecture completely eliminates mechanical backlash and gear wear. It allows instant, localized adjustments to web tension and cylinder position, ensuring much faster and tighter registration lock-in.
A: Tolerances vary greatly by material thickness and specific plastic type. However, modern equipment processing extensible films typically requires tension control accuracy within +/- 1% to 2% of the total tension setpoint. Holding this tight window prevents material necking and maintains flawless color registration.
