Poor color registration is not just a minor aesthetic flaw. It represents a direct drain on your operational profitability. Registration errors lead directly to high substrate waste and rejected production runs. Setup times become prolonged as operators struggle to align multiple cylinders manually. You cannot afford to treat this issue lightly in highly competitive packaging markets. Global brands demand flawless visual consistency across every single product line.
Achieving true micron-level precision requires far more than basic operator skill. It demands highly specific structural and software capabilities from your rotogravure printing machine. Relying on outdated mechanical configurations is no longer a viable strategy for high-speed operations. Modern flexible packaging demands rigorous dynamic stability during every phase of the print run.
Procurement teams and plant managers must evaluate new equipment critically. Distinguishing between glossy marketing claims and verifiable technical capabilities is absolutely essential. We will explore how system architecture, tension control, and modern automation directly influence long-term stability. You will learn how to identify the exact technical features necessary to protect your margins and satisfy stringent client expectations.
System Architecture Matters: Moving from mechanical shafts to independent servo-driven systems significantly reduces gear backlash and registration drift.
Tension is the Foundation: Accurate color matching is impossible without strict web tension control, especially on highly extensible flexible films.
Automation Limits: While Automatic Registration Control (ARC) systems minimize human error, they require baseline mechanical stability and rigorous cylinder preparation to function effectively.
Before upgrading your printing hardware, you must define strict success criteria. Industry standards dictate acceptable tolerance limits for different applications. Standard flexible films usually require alignment accuracy within ±0.1mm. Premium packaging designs feature complex gradients and fine reverse text. These high-end jobs demand even tighter controls, often pushing limits down to ±0.05mm. Failing to meet these micro-tolerances results in immediate visual degradation. Colors become muddy, text appears blurry, and brand logos lose their sharp impact.
When alignment drifts out of tolerance, you immediately lose money. The financial impact extends far beyond simple ink costs. Material waste piles up exponentially during prolonged setup phases. Operators often run hundreds of meters of expensive substrate just to dial in the initial colors. Furthermore, drying hoods consume massive amounts of thermal energy while operators struggle to align cylinders manually. You also face severe financial penalties if clients reject defective rolls upon delivery. A single rejected master roll can wipe out the profit margin of an entire production shift.
Buyers must evaluate equipment based on its dynamic stability. A basic press might hold adequate alignment at steady-state speeds. However, static operation rarely reflects real-world manufacturing conditions. True performance is measured during speed transitions. Presses speed up, slow down, and execute automated roll splices continuously. You need a system capable of recovering instantly from these dynamic shifts. Evaluating a press solely on its top cruising speed is a critical procurement mistake.
Traditional mechanical line shafts rely on a single massive motor. This single drive unit connects to every printing station via a long continuous metal shaft. Complex gearboxes transfer power from the main shaft to individual cylinders. Over time, these mechanical linkages degrade. Gears wear down naturally and introduce physical space between teeth. We call this phenomenon mechanical backlash. Furthermore, the long steel shaft experiences torsional wind-up under heavy operational loads. The shaft twists slightly from the drive end to the far end. These physical limitations guarantee inevitable alignment errors over time.

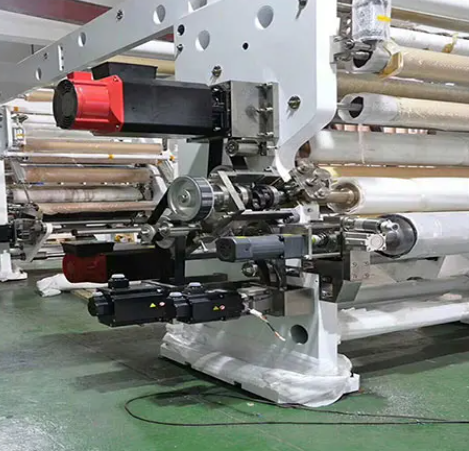

Upgrading to an electronic shaft rotogravure printing machine completely eliminates these physical bottlenecks. This advanced architecture utilizes independent, high-precision servo motors at each print station. It removes the long physical shaft entirely. It eliminates complex mechanical gearboxes and their associated backlash.
The electronic line shaft (ELS) architecture transforms operational outcomes fundamentally. Each cylinder receives precise, independent rotational commands from a central computer. If station number four needs a micro-adjustment, its dedicated servo executes the shift instantly. This architecture enables significantly faster pre-registration routines. Operators can execute dynamic adjustments on the fly without experiencing any mechanical lag. Complex jobs become much easier to scale. You achieve much faster setups and vastly superior long-term accuracy.
Worn drive gears causing microscopic cylinder vibrations.
Degraded universal joints transferring inconsistent torque.
Torsional shaft twisting during rapid machine acceleration.
Improperly lubricated bearings introducing uneven rotational friction.
High-speed printing applies immense physical stress to flexible substrates. Handling highly extensible materials like polyethylene (PE) or oriented polypropylene (BOPP) presents distinct engineering challenges. When operating a film gravure printing machine, precise tension control serves as your absolute foundation. Heat from the required drying hoods exacerbates material stretching. If the film stretches inconsistently between color stations, accurate alignment becomes physically impossible.
You must ensure strict mechanical isolation between different machine sections. Proper in-feed and out-feed isolation is critical. Mechanical isolation prevents downstream rewinding fluctuations from traveling backward into the central printing units. Modern presses divide the entire machine into distinct, highly regulated tension zones. The unwind zone, printing zone, and rewind zone must operate independently while communicating continuously.
Modern tension management systems combine two distinct mechanical approaches. They utilize low-friction dancer rollers alongside precision load cells. Dancer rollers absorb sudden physical web shocks seamlessly. They move physically to compensate for sudden material slack. Meanwhile, load cells provide precise, quantitative tension feedback directly to the central PLC. The load cell measures the exact pulling force across the web continuously.
You must remain highly skeptical of equipment promising "perfect tension" without explaining the underlying mechanism. Look exclusively for robust closed-loop feedback systems. These systems must execute micro-adjustments to the servo motors within milliseconds. A proper closed-loop setup detects a minute tension spike and corrects it before the human eye can even register the deviation.
Managing cumulative errors becomes exponentially harder as color counts increase. An 8 color gravure printing machine requires sophisticated longitudinal and lateral compensation mechanisms. A minor deviation of 0.02mm at station two multiplies significantly by the time the web reaches station eight. Operators simply cannot manage this level of compounding error manually.
Automatic Registration Control (ARC) systems manage this extreme complexity seamlessly. High-speed photoelectric sensors continuously scan printed marks on the moving web. These sensors communicate instantly with the primary PLC. If a color mark arrives a fraction of a millisecond late, the system reacts. It adjusts the cylinder phase precisely to correct longitudinal errors. Simultaneously, it shifts the cylinder position physically sideways to correct any lateral deviations.
You should strongly evaluate presses offering automated pre-registration features. This function aligns cylinder positions mathematically before the web even begins moving. The sensors locate the cylinder keyway positions and rotate all stations into perfect synchronization. Automated pre-registration drastically reduces startup material waste. It allows operators to hit accurate alignment within the first few meters of a new roll.
Furthermore, you must integrate advanced vision systems directly into your workflow. Connect 100% defect inspection cameras to the ARC data stream. This integration provides real-time monitoring and immediate visual alert generation. Operators can monitor the micro-alignment on a high-definition screen. They can intercept slight alignment drifts before the press ruins thousands of meters of expensive film.
Feature Capability | Manual / Mechanical Systems | Advanced ARC Systems (ELS) |
|---|---|---|
Correction Speed | Slow. Requires physical gear adjustments. | Instantaneous. Millisecond servo response. |
Pre-Registration | Manual visual alignment required. High waste. | Fully automated phase alignment before moving. |
Lateral Adjustment | Operator must turn manual handwheels. | Motorized edge guides and automated cylinder shifting. |
Dynamic Recovery | Poor. Loses alignment during speed changes. | Excellent. Maintains synchronization during splices. |
Software automation alone will never guarantee flawless production runs. Baseline mechanical realities still dictate your final print quality heavily. Poorly prepared printing cylinders will defeat the most expensive ARC systems instantly. Incorrect cylinder circumferences create impossible mathematical scenarios for the control software. Damaged keyways create unmanageable physical vibrations at high speeds. Even slightly worn bearings introduce microscopic chatter. You must audit your cylinder preparation processes rigorously. Ensure every cylinder meets strict Total Indicated Runout (TIR) tolerances before installation.
Environmental variables also pose significant daily adoption risks. Inconsistent drying temperatures easily warp sensitive plastic substrates. Excessive heat softens polyethylene rapidly, causing unpredictable elongation between printing stations. Poor ambient plant humidity alters material behavior and increases static electricity buildup. You must stabilize your facility environment comprehensively. Install precise chill rollers after each drying hood to stabilize the film temperature before it enters the next printing nip.
High-tech solutions carry highly specific maintenance burdens. Servo motors and optical sensors demand routine, precise operational calibration. They require exceptionally clean operating environments free of excessive solvent dust or ink mist. You must invest heavily in specialized technician training. Your maintenance team must understand basic network diagnostics and servo tuning. Advanced registration architectures fail quickly without stringent, proactive preventative maintenance protocols in place.
Clean photoelectric sensor lenses daily using approved non-abrasive solvents.
Verify load cell calibration using certified standard weights every single month.
Inspect chill roller fluid levels and flow rates before beginning high-speed runs.
Audit all cylinder circumferences using digital micrometers during the staging phase.
Selecting a highly reliable gravure printing machine requires looking far beyond basic technical specification sheets. Every vendor claims high accuracy in their marketing brochures. You must evaluate the press under stressful, real-world manufacturing conditions. Do not accept a demonstration run executed only at steady, moderate speeds.
Use this rigorous vendor assessment checklist to guide your procurement evaluation:
Demand a Dynamic Proof of Concept: Request a live machine trial focused heavily on dynamic registration recovery. Watch precisely how quickly the press stabilizes after a deliberate emergency speed change. Demand to see an automated roll splice at full production speed. Measure the exact length of wasted material during the recovery phase.
Verify Component Sourcing: Check if the ARC and servo drives utilize proprietary, locked-down hardware. Proprietary electronics trap you into expensive vendor service contracts. Prefer equipment utilizing industry-standard, easily replaceable components. Look for mainstream automation brands like Siemens, Bosch Rexroth, or Yaskawa.
Evaluate Software Transparency: Ensure the main control interface delivers clear, actionable diagnostic data. Avoid closed "black box" systems that hide calculation data. Operators need to see real-time tension curves, servo torque values, and historical error logs. Transparent software empowers your maintenance team to troubleshoot issues rapidly without calling external support.
For your immediate next steps, build a robust internal financial justification model. Compare the higher initial capital expenditure of ELS machines against projected operational savings. Factor in the massive reduction in daily substrate waste. Calculate the value of reclaiming hundreds of hours in setup time annually. A premium electronic line shaft press dramatically lowers your daily material consumption and boosts overall equipment effectiveness over a ten-year lifecycle.
Consistent color registration is an engineered outcome. It results directly from stable structural mechanics, precise closed-loop tension control, and highly responsive digital automation. You cannot achieve modern quality standards relying on legacy mechanical linkages and manual operator adjustments alone.
Obsolete mechanical shafts cannot manage the micro-adjustments required for complex, multi-color flexible packaging. Proper web management requires strict mechanical zone isolation and continuous sensor feedback. You must manage substrate elongation aggressively using chill rollers and highly responsive dancer systems.
Upgrading to modern electronic-shaft architectures serves as a necessary defensive business investment. Converters must adopt these advanced servo-driven technologies immediately. Doing so allows you to handle thinner sustainable films and tighter client visual tolerances confidently. Take action today by auditing your current press stability. Define strict maximum waste thresholds to guide your next major equipment purchase effectively.
A: Acceptable tolerances vary based on the specific substrate and design complexity. Industry standards typically dictate ±0.1mm accuracy for standard flexible packaging films. However, high-end premium packaging often demands much tighter controls, pushing requirements down to ±0.05mm. Maintaining these micro-tolerances over long production runs requires electronic line shafts and highly responsive automated correction systems.
A: Press acceleration and deceleration significantly disrupt established web tension. These sudden tension fluctuations cause flexible substrates to stretch or relax unexpectedly. Without advanced servo controls to compensate instantly, alignment will drift dramatically during any speed transition. This dynamic instability causes massive material waste unless controlled by an electronic line shaft press.
A: Yes, retrofitting older presses is mechanically possible. However, existing mechanical backlash, internal gear wear, and torsional shaft wind-up severely limit the effectiveness of an added ARC system. The digital sensors might detect alignment errors perfectly, but the physical mechanical lag prevents precise physical correction. Upgrading entirely to a modern servo-driven press usually provides a vastly superior financial return.
A: Extensible materials like polyethylene (PE) undergo rapid elastic deformation under operational stress. Heat from the required drying units softens the film considerably. Mechanical pulling forces then stretch this softened material unpredictably. This combination alters the physical distance between printed color marks. You must utilize highly compartmentalized, isolated tension zones to prevent this stretch and maintain proper synchronization.
