| Quantity: | |
|---|---|
This machine suitable for jumbo roll material slitting ,such as cardboard paper, craft paper, Self-adhesive Paper, insulation paper, self adhesive sticker paper ,paper label ,plastic label,coated paper,PVC,PET,BOPP ,PE etc plastic film.
PERFORMANCE AND CHARACTERISTIC:
1. The machine use PLC control,three pcs Servo Motors, tension automatic control surface¢er rewinding together way（The rewinding way make the narrow roll hard and slitting surface smooth.)
2. The machine use frequency converter to adjust and control speed,it can keep stability when the speed running up.
3.Automatic counter meter, auto alarm and auto stop when the machine had fault. Automatic stop when reach the rewinding roll size you are setting.
4.The rewinding use A、B two pcs pneumatic slip shaft structure, unloader operation easy.
5.The unwinding Web Guide(EPC) use ultrasonic control way to keep and correct the web material position.
6.It use round blade slitting knife , the waste material automatic take out by blower fan.
7.Auto pneumatic shaft-less loading structure.
技术参数 | Technical parameter | ||
母卷最大宽度 | 1300mm | Max width mother roll | 1300mm |
收卷最小宽度 | 30mm | Min width finished roll | 30mm |
放卷最大卷径 | 800mm | Max diameter mother roll | 800mm |
收卷最大直径 | 600mm | Max diameter finished roll | 600mm |
母卷最大重量 | 800KG | Max mother roll weight | 800KG |
分切速度 | 0-450m/min | Speed of slitting | 0-450/min |
分切克重 | 50-450gsm | Slitting capability | 50-450gsm |
分切厚度 | 0.015-0.06mm | Material thickness | 0.015-0.06mm |
卷曲方式 | 中心表面卷曲 | Rewinding way | Central&surface |
分切精度 | ±0.2mm | Precision | ±0.2mm |
调速控制 | 变频调速 | Speed regulation control | Frequency converter |
输入电源 | 380V三相四线 | Power input | 380V,50HZ,3PH |
总功率 | 28KW | Total power | 28KW |
机型尺寸 | 4510*3645*2035 | Dimension | 4510*3645*2035 |
总重量 | 5500KG | Total weight | 5500KG |
| Picture Show | ||

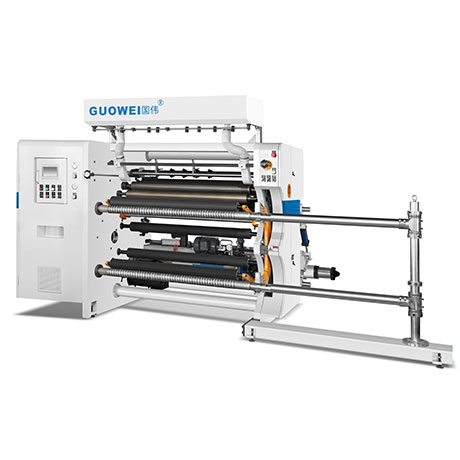

Appearance |  | |

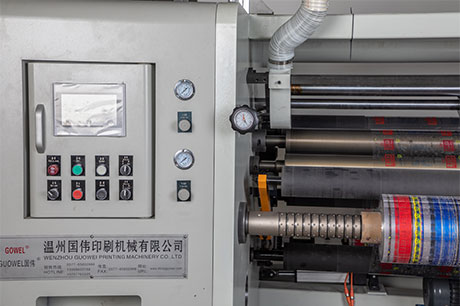

Unwinding structure | ||
Flat Razor Blade Knife |  | |

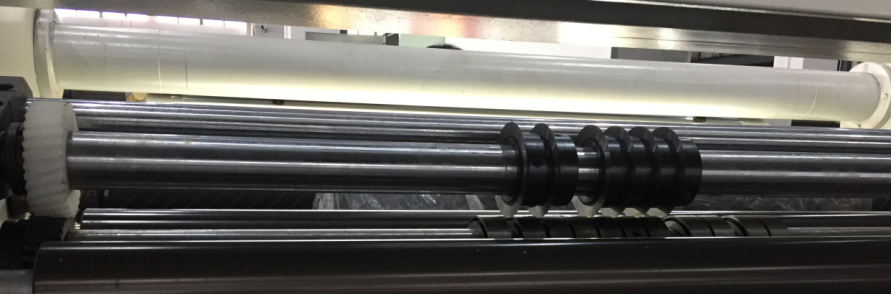

Round blade knife |  | |
Waste edge collection box | ||
Rewinding shaft | Friction shaft | |
 | ||

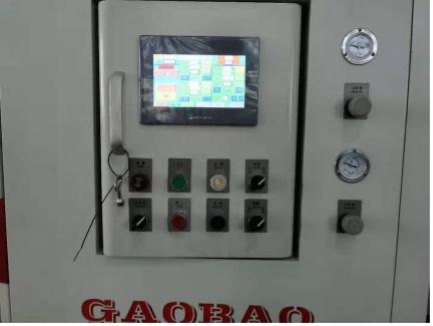

PLC Touching Screen |  |  |
